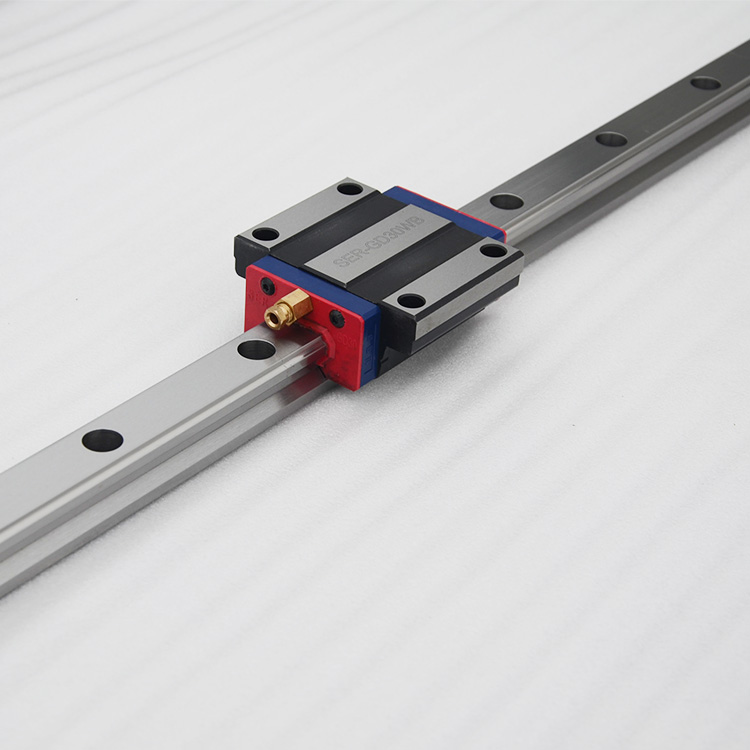

SER-GD45WA linear guide

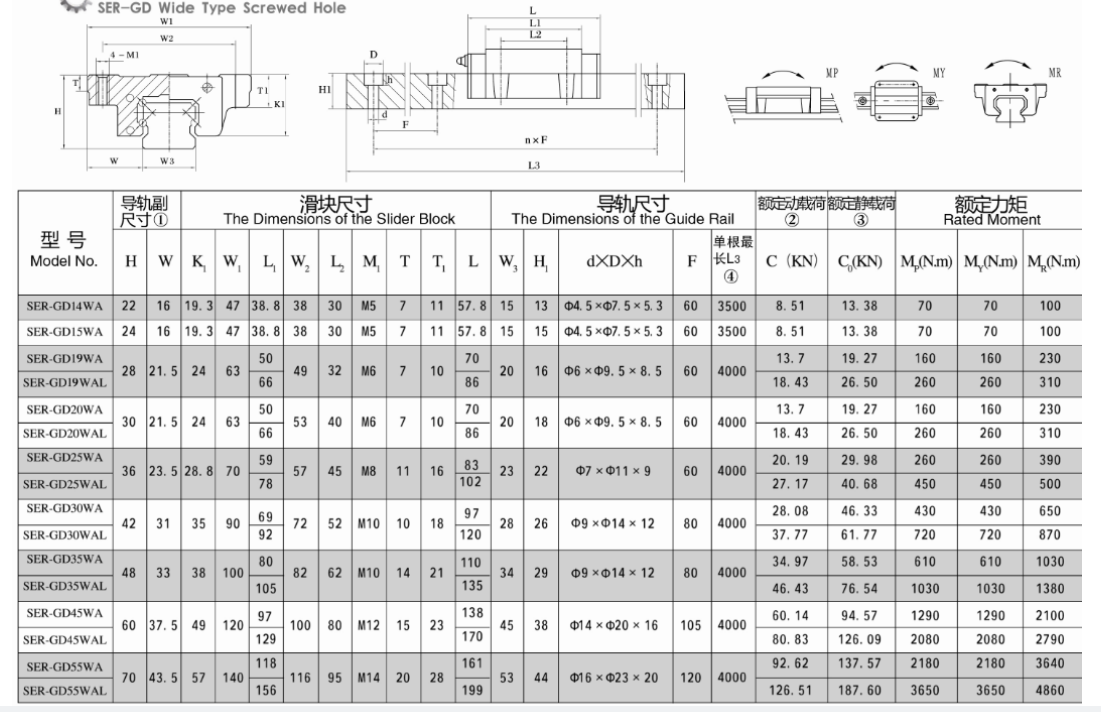

Specifications:

Linear Guide

1. Sair SER-GD Series linear guide

2. Accurancy: Grade 1,2,3,4,5 or C/H/P/SP/UP

3. Preload code: Z0, Z1, Z2

4. In stock

5. Performance: antifriction, interchangeable

6. Material: bearing steel GCr15

7. Rigidity: 58-62

8. Application: CNC or automatic machinery

9. Length: can be cut to your requirement (100mm-4000mm)

10. Match: could match with ball screw in one machinery

Apply:

Machine centers, Machine tools, Precision machining machines, Heavy cutting machines, Punching machines, Marble cutting machines, Automatic equipments, Grinding machines, High speed transfer equipments, Injection molding machines, Measuring equipments.

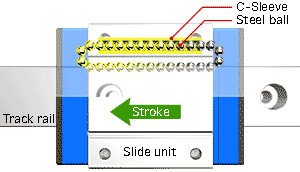

Products running dynamic figure

Linear guide can be understood as a rolling guide, it is balls infinite scrolling loop between the slider with the rail, so that the load platform along the rail with high precision linear motion easily.   And reducing friction coefficient to one over fifty of traditional sliding guide, can achieve a high positioning accuracy easily.
